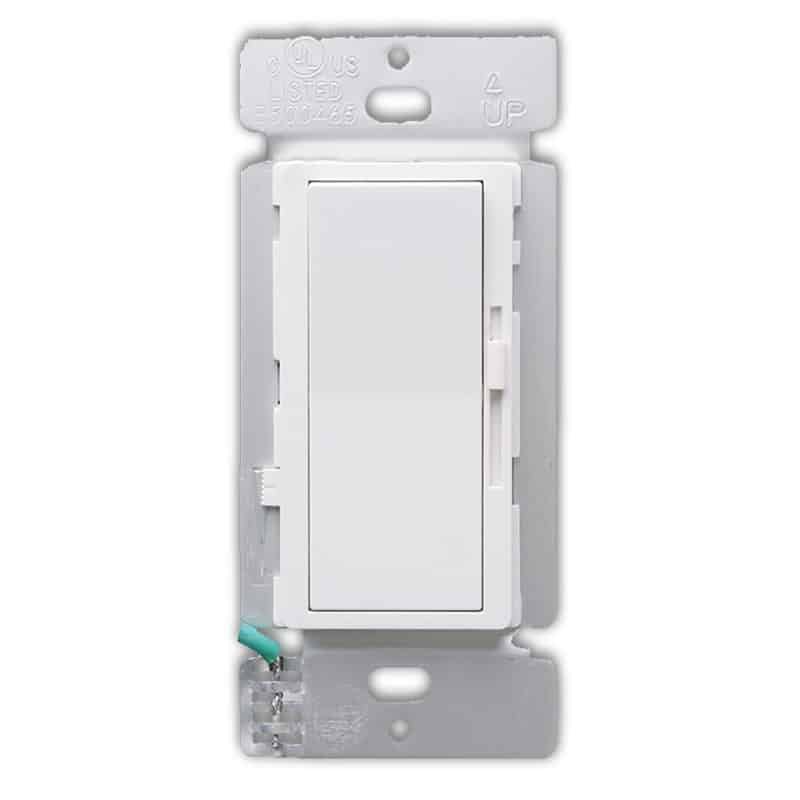

3Way Slide Dimmer – Class A

Description

• Model No.: BAK-004AG
• Standard: UL1472
• Rated Power: 600W Incandescent / 150W CFL & LED
• Rated Voltage: 120V/60Hz
• Insulation Resistance: >10MΩ (DC500V)
• Mechanical Life: 40/000 times
• Cable Specification: 18AWG
• Temperature: -20°C~60°C
• Option: Class A
• Type: 3Way
• Electrical clearance: 1.2mm between live parts & 3mm between live parts & other parts
• Creepage distance: ≥3mm
